XNUCLEO-F411RE

AliEXpress STM32 XNUCLEO-F411RE Compatible to NUCLEO-F411RE compatible – WaveShare US$27


https://fr.aliexpress.com/item/32336518511.html

NUCLEO-F411RE STM32 Nucleo Stm32 Board Support Arduino, Compatible with NUCLEO-F411RE Free Shipping

STM32 Development Board, Support Arduino, Compatible with NUCLEO-F411RE

Characteristics

  • Compatible with NUCLEO-F411RE, Cortex-M4 STM32F411RET6 onboard microcontroller
  • Arduino connectivity support, easy to connect with various Arduino shields and access massive Arduino resources
  • ST Morpho headers provide full access to all STM32 I / O, easy for peripheral expansion
  • Support mbed, quickly prototype by mbed SDK and online tools
  • Comprehensive HAL open source library, including a variety of software examples
  • Supplied with a separate ST-LINK / V2 module

Benefits

CompareXnucleoNucleoNotes
Arduino compatibilityUNO, LeonardoUNOXnucleo can be configured by jumper to be compatible with UNO (default) or Leonardo
Arduino ICSP interfaceYesAnyICSP is required by certain types of shields
USB connectivityYesAnyNucleo’s USB connector is only for debugging, not available for USB connection
USB connectorMicro USBMini USBMicro USB is the advanced USB standard
Morpho letterheadMostAnyNow you can check the PCB brand instead of the datasheet
Common interfaces are connected viaSweaters0Ω resistorsSweaters are much easier to use, seamless
UART debuggingAvailable during in-circuit debuggingNot available during in-circuit debuggingThe ST-LINK / V2 integrated nucleo functional chip can be simulated as a serial port, however, it is not available during in-circuit debugging, while xnucleo has a standalone USB to UART chip.
8 MHz crystalYesAnyThe timer is more accurate when using an external 8 MHz crystal
Crystal 32.768 KHzYesAnyRequired for RTC
USB fuseYes (500mA)AnyComputer USB interface may be damaged without fuse
Led41The more LEDs, the easier it is to monitor the program execution status
UART indicatorYesAnyData communication is now visible
DC inputYesAnyA convenience
Button positionNear the edge of the circuit boardNear the Arduino connectorThe button will not be untouchable when connecting with an Arduino shield if it was close to the edge of the PCB
ST-LINKSeparateIntegratedST-LINK can be used everywhere else
Comes with USB cableYesAny

What’s on the XNUCLEO-F411RE

XNUCLEO-F411RE STM32 development board on board resource

  1. STM32F411RET6
    • Core: ARM® 32-bit Cortex ™ -M4
    • Operating frequency: 100 MHz
    • Working voltage: 1.7V-3.6V
    • Package: LQFP64
    • Memories: 512kB Flash, 128kB SRAM
    • Interfaces: 1 x SDIO, 1 x USB 2.0 FS, 5 x SPI or 5 x I2S, 3 x USART, 3 x I2C
    • AD / DA: 1 x AD (12 bits, 16 channels)
  2. SPX3819M5: 3.3 V voltage regulator
  3. AMS1117-5.0: Voltage regulator 5.0 V
  4. CP2102: USB to UART converter
  5. Arduino connector: To connect Arduino shields
  6. ICSP interface: Arduino ICSP
  7. USB to UART : For debugging
  8. USB connector : USB communication interface
  9. SWD interface: For programming and debugging
  10. Morpho ST Heads: Access to VCC, GND and all I / O, easy to expand
  11. DC input 6-12 V
  12. User button
  13. Reset button
  14. Power indicator
  15. User LED
  16. 500mA fast self-recovery fuse
  17. Rx / Tx serial port indicator
  18. 8 MHz crystal
  19. Crystal 32.768 KHz
  20. ADC / I2C selection jumper
    • Short A and B: Arduino A4, A5 is used as I2C
    • Short B and C: Arduino A4, A5 is used as ADC
  21. UART selection sweater
  22. MCU Current Test Jumper: For low power testing
  23. Power selection jumper
    • Short 5V and U5V: powered by USB connection
    • Short 5 V and E5V: powered by an external power supply
  24. USB jumper
    • Short the sweater to activate
    • Open the jumper to disable
  25. User button sweater
    • Short the jumper to connect to the I / O used in the sample code
    • Open the jumper to connect it to other custom pins via jumper wires
  26. User LED jumper
    • Short the jumper to connect to the I / O used in the sample code
    • Open the jumper to connect it to other custom pins via jumper wires

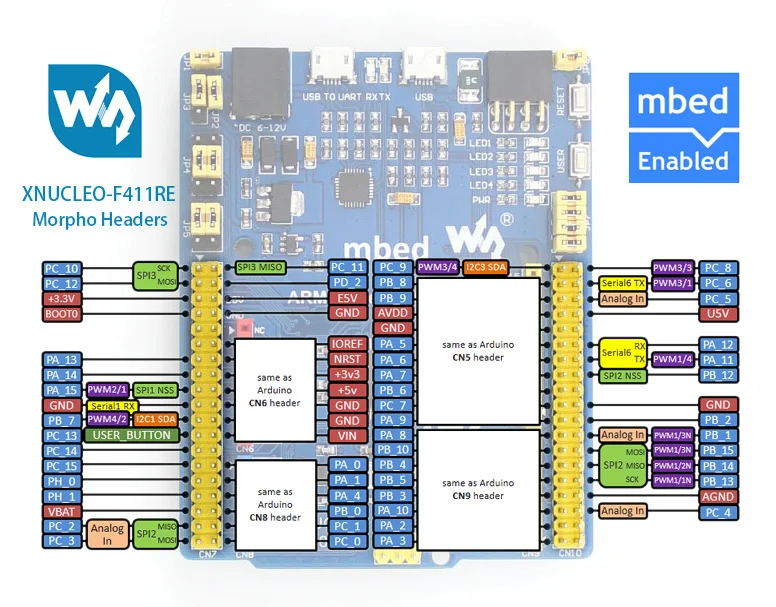

XNUCLEO-F411RE Extension Headers

XNUCLEO-F411RE STM32 development boardXNUCLEO-F411RE STM32 development board

Photos XNUCLEO-F411RE

XNUCLEO-F411RE STM32 development board
STM32 XNUCLEO-F411RE Development BoardXNUCLEO-F411RE STM32 development board
STM32 development XNUCLEO-F411RE rear viewXNUCLEO-F411RE STM32 development board
STM32 XNUCLEO-F411RE Development BoardXNUCLEO-F411RE STM32 development board
STM32 development XNUCLEO-F411RE rear viewXNUCLEO-F411RE STM32 development board
Connection with ST-LINK / V2 (mini)XNUCLEO-F411RE STM32 development board
Connection with sensors

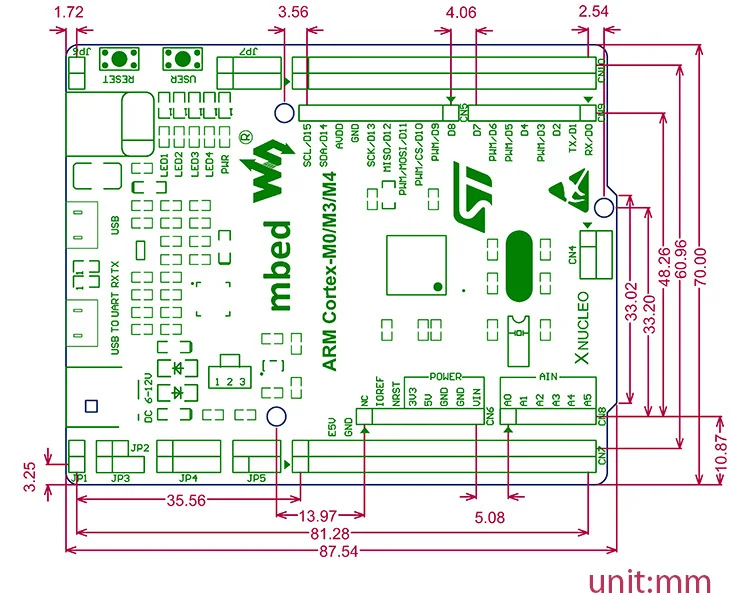

Dimension XNUCLEO-F411RE

Downloads

Development resources: Demo codes, diagrams, datasheets, etc.
Www.wav eshare.com/wiki/XNUCLEO-F411RE

The package contains

  1. XNUCLEO-F411RE x 1
  2. ST-LINK / V2 (mini) x 1
  3. USB Type A plug to Micro B plug cable x 1
  4. USB Type A plug to plug cable x 1
