SIM7600G 4G LTE Module – Notes 1

Sources
US $ 77



For different regions, we provide several 4G hats to choose from:
  • SIM7600A-H 4G HAT : Mainly applicable in North America (United States, CA)
  • SIM7600E-H 4G HAT : Mainly applicable in Southeast Asia, West Asia, Europe, Africa
  • SIM7600CE 4G HAT : Mainly applicable in China
  • SIM7600G-H 4G HAT : The global version

Overview

The SIM7600G-H 4G HAT is a 4G / 3G / 2G communication and GNSS positioning module, which supports LTE CAT4 up to 150 Mbps for downlink data transfer. It is quite low power consumption.

You can connect this 4G module to a computer to surf the Internet, or fix it on Raspberry Pi to activate functions such as high-speed 4G connection, wireless communication, taking telephone calls, sending SMS, global positioning, etc.

Characteristics
  • Raspberry Pi 40PIN Standard GPIO extension header, supports raspberry Pi series cards, Jetson Nano
  • Supports dialing, phone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports positioning of GPS, BeiDou, Glonass, LBS base stations
  • Built-in USB interface, for testing commands, obtaining GPS positioning data, etc.
  • Built-in USB to UART converter CP2102, for serial debugging
  • Breaking UART control pins, to connect with host boards like Arduino / STM32
  • SIM card slot, supports 1.8 V / 3 V SIM card
  • TF card slot to store data like files, messages, etc.
  • On-board audio jack and audio decoder for making a phone call
  • 2x LED indicators, easy to monitor the operating status
  • On-board voltage translator, the operating voltage can be configured to 3.3 V or 5 V via the jumper
  • Baudrate: 300bps ~ 4 Mbps (default: 115200bps)
  • Baudrate Autobauding: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005 and V.25TER command set)
  • Supports SIM application toolbox: SAT class 3, GSM version 11.14 99, USAT
  • Comes with development resources and a manual (examples for Raspberry Pi / Jetson Nano / Arduino / STM32)
Communications Specifications
LTE WCDMA / TD-SCDMA / CDMA 2000 EDGE GSM / GPRS
Bandaged SIM7600A-H:
LTE-FDD B2 / B4 / B12
SIM7600A-H:
UMTS / HSPA + B2 / B5
Not available
SIM7600E-H:
LTE-FDD B1 / B3 / B5 / B7 / B8 / B20
LTE-TDD B38 / B40 / B41
SIM7600E-H:
UMTS / HSPA + B1 / B5 / B8
GSM / GPRS / onboard 900/1800 MHz
SIM7600CE-T:
LTE-TDD B38 / B39 / B40 / B41
LTE-FDD B1 / B3 / B8
SIM7600CE-T:
UMTS / HSDPA / HSPA + B1 / B8
TD-SCDMA B34 / B39
CDMA 1X / EVDO BC0
SIM7600G-H:
LTE-TDD B34 / B38 / B39 / B40 / B41
LTE-FDD B1 / B2 / B3 / B4 / B5 / B7 / B8
/ B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B66
SIM7600G-H:
UMTS / HSDPA / HSPA + B1 / B2 / B4 / B5 / B6 / B8 / B19
SIM7600G-H:
GSM / GPRS / EDGE 850/900/1800 / 1900MH
Generation 4G 3G 2.5G 2G
Transmitting power 0.25 W 0.5W @ EGSM900
0.4W @ DCS1800
2W @ GSM900
1W @ DCS1800
Data speed LTE CAT 4
Uplink≤50 Mbps
Downlink≤150 Mbps
UMTS
Uplink≤384Kbps
Downlink≤384Kbps
EDGE
Uplink≤236. 8 kbps
Downlink≤236. 8 kbps
GPRS
Uplink≤85. 6 kbps
Downlink≤85. 6 kbps
HSPA +
Uplink≤5. 76 Mbps
Downlink≤42Mbps
SIM card Normal SIM (not included)
GNSS Specifications
  • The type of receiver
    • 16 channels
    • Code C / A
  • Sensitivity
    • Monitoring: -159 dBm (GPS) / – 158 dBm (GLONASS) / TBD (BD)
    • Cold starts: -148 dBm
  • Priority time (outdoors)
    • Cold starts: <35 s
    • Hot starts: <1 s
  • Precision
    • Position: <2.5 m CEP
SMS and Audio Specifications
  • SMS
    • Supported types: MT, MO, CB, text, PDU
    • Storage: USIM card and me (default)
  • Audio function
    • Support echo cancellation
    • Supports noise reduction
Other Specifications
    • Power supply: 5 V
    • Operating voltage: 5 V / 3.3 V (configured via the jumper)
    • Operating temperature: -30 ° c ~ 80 ° c
    • Storage temperature: -45 ° c ~ 90 ° c
    • Dimensions: 56.21mm x 65.15mm
What’s on board
  • 1
  • SIM7600G-H
  • CP2102 USB to UART converter
  • NAU8810 audio decoder
  • TXS0108EPWR translator voltage: Translated 3.3 V / 5 V into 1.8 V
  • MP2128DT power chip
  • MP1482 power chip
  • Raspberry Pi GPIO header: For connection with raspberry Pi
  • SIM7600 control interface: For connection with host cards like Arduino / STM32
  • SIM card slot: Supports 1.8 V / 3 V SIM card
  • TF card slot: Allows storage of files / SMS / …
  • 3.5mm headphone / microphone jack
  • USB interface: For testing AT commands, obtaining GPS positioning data, etc.
  • Usb to UART interface: For serial debugging, or connect to Raspberry Pi
  • MAIN antenna connector
  • AUX antenna connector
  • GNSS antenna connector
  • Power switch
  • Network status indicator
  • Power indicator
  • Operating voltage selection
    jumper : VCCIO-3.3 V: set the operating voltage as 3.3 V
    VCCIO-5 V: set the operating voltage as 5 V
  • UART pull selection:
    A: access the Raspberry Pi via USB to UART
    B: control the SIM7600 via Raspberry Pi
    C: control the SIM7600 via USB to UART

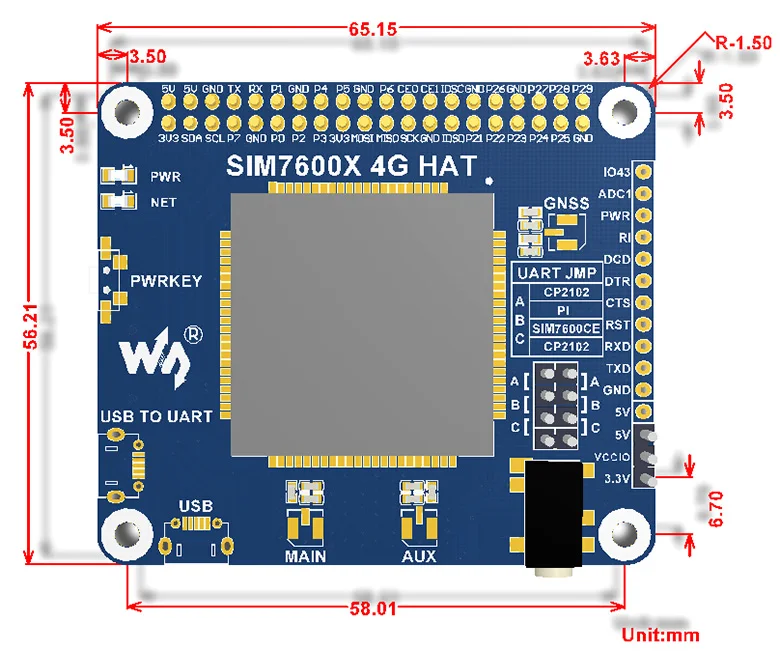

Dimension
  • 2
Package Contains
  • SIM7600G-H 4G HAT x1
  • LTE antenna x1
  • External GPS antenna (B) x1
  • USB type A socket to the microphone socket cable x2
  • RPi screw pack (2 pieces) x1
